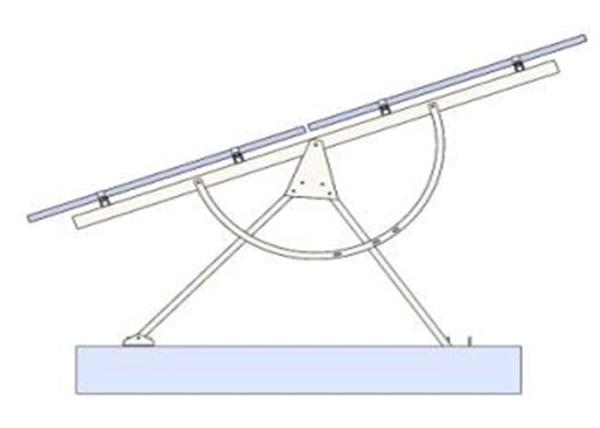

Solar Mounting Bracket Adjustable Angle Bracket C-steel Photovoltaic Stents
The adjustablen mounting solution for grounded solar PV system, which is very popuplar in Japan, Australia, Middle East, etc.
It requires heavier and more materials for the pole, as it need to penetrate into the soil up to 1-2 meters, depending on the soil condition and wind speed.
The main components are main poles (front and rear), main beam, rails, mid and end clamps, weed washer, grounding lugs, etc
Other similiar solutions are also available, and we can customize the design upon requests and real situations.
Product Feature:
1. Increase generated energy to get higher income for solar power plant
In different seasons, tilt angle could be adjusted manually to adapt to solar incident changes and to increase effective solar radiation intensity received by modules and prolong the time of generating electricity within one day. It increases gross generation 5%~10% more than fixed solar mounting structure.
2. Convenient angle adjustment
Design matrix size reasonably, Adjust manually, easily and quickly, low maintenance and operation cost.
3. Economic and high cost efficiency
The Solar Mounting Structure is made of low cost carton steel; It is with simple structure, less accessories, and low installation cost.
4. High corrosion resistance on the surface of Solar Mounting Structure
The surface of carbon steel is hot dipped galvanized with high corrosion resistance. The zinc coating thickness is up to 85um. It is suitable for different climatic environment.
5. Flexible and versatile structures, to satisfy customization requirement
The Solar Mounting Structure is flexible and versatile, applicable to various foundations, wind speed and snow load, models of solar modules. It can satisfy customization requirements of investors or EPC for utility scale solar power plants.
Product Parameter :
| Type | Ground solar mounting |
| Color | Natural or Customized |
| Treatment | Anodized, Galvanized |
| Structural materials | Aluminum Alloy,Hot-Galvanized Steel, Stainless Steel |
| Install Angle | 0-60 degree |
| Ground Clearance | ≥ 0.15m |
| Max Building Height | 20 m |
| Wind load | 130mph(60m/s) |
| Snow Load | 30psf(1.4kN/m2) |
| Applicable Module | Framed, frame-less |
| Module Orientation | Portrait, landscape |
| Array Layout | According to the actual situation |
| Warranty | 10 years |
| Duration | More than 25 years |
